Diamond segments of circular saw blades for granite cutting - << step taper shape
For diameter: 350-600mm
Segment size: H12mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

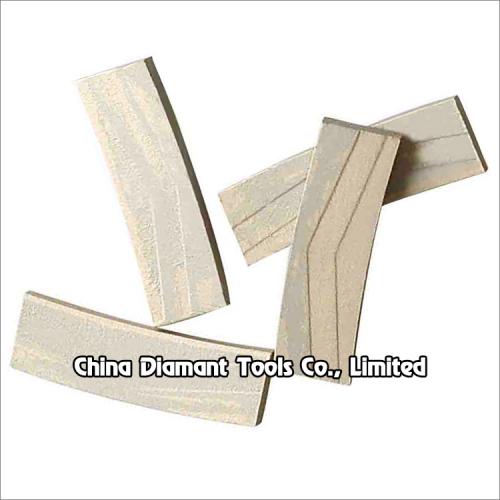

Diamond segments of circular saw blades for granite cutting - "<<" step taper shape

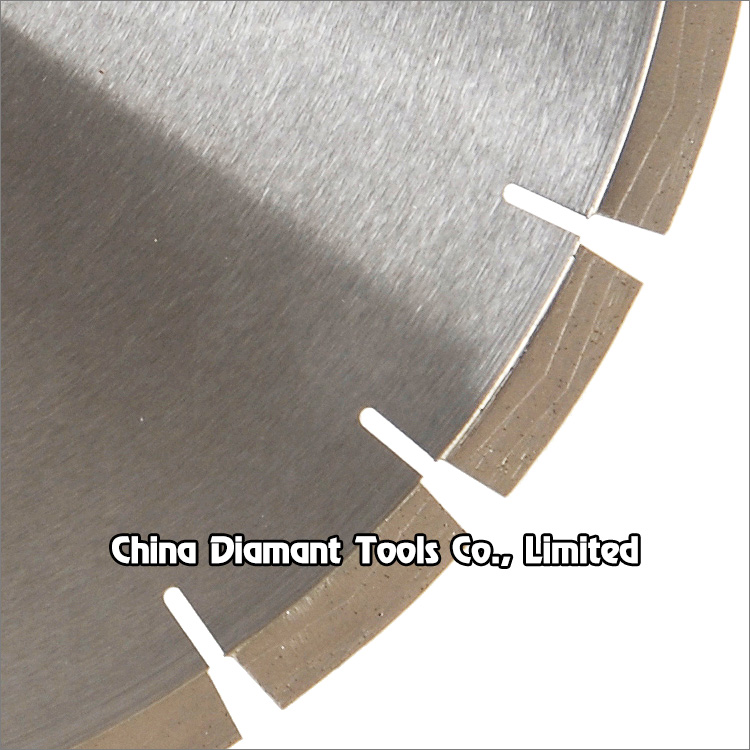

Diamond segment "<<" step taper shape of 350-600mm circular saw blades for slab edge cutting of granite, sandstone, various hard stone with quartz.
"|<<" step taper shape is benefit for speed cutting.
Suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.
Wet use only with sufficient water.
Welding method: Silver welding by high frequency welding machine.
|
Code No. |
Diameter (mm/Inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
|
DSGS-06-250 |
250mm(10") |
x |
18 |
|
DSGS-06-300 |
300mm(12") |
x |
21 |
|
DSGS-06-350 |
350mm(14") |
40x3.2x12 |
24 |
|
DSGS-06-400 |
400mm(16") |
40x3.6x12 |
28 |
|
DSGS-06-450 |
450mm(18") | 40x4.0x12 |
32 |
|
DSGS-06-500 |
500mm(20") |
40x4.2x12 |
36 |
|
DSGS-06-550 |
550mm(22") |
40x4.4x12 |
38 |
|
DSGS-06-600 |
600mm(24") |
40x4.6x12 |
42 |
|
DSGS-06-700 |
700mm(28") |
x |
50 |
|
DSGS-06-750 |
750mm(30") |
x |
50 |
|
DSGS-06-800 |
800mm(32") |
x |
46 |
The above specifications & photos are for reference, other specification may be available as per demand.
