900mm-3500mm diamond segments for granite hard stone block Cutting - || step taper shape
For diameter: 900-3500mm
Segment size: H12/15/20/30mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

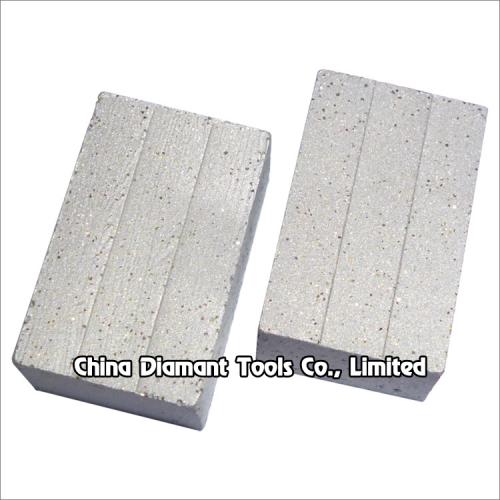

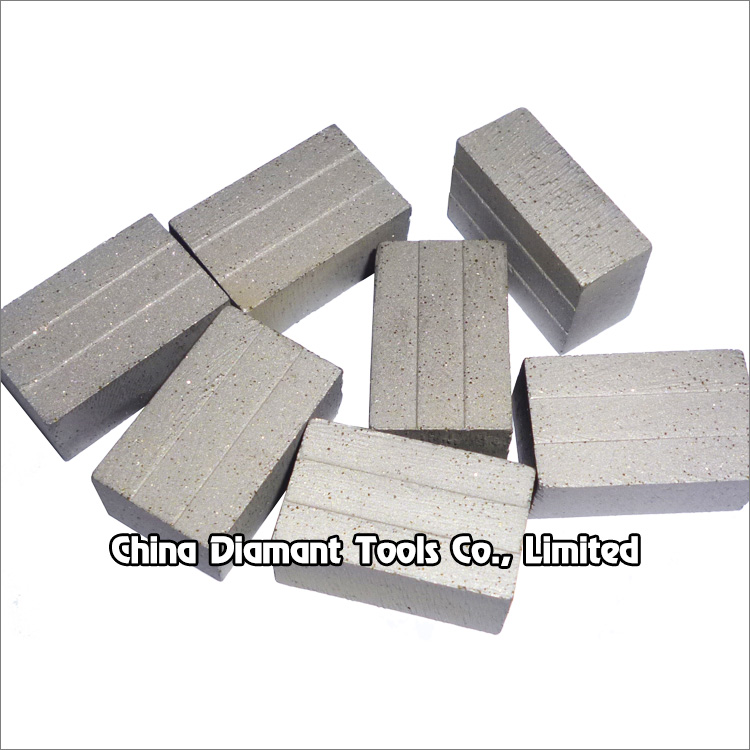

900mm-3500mm diamond segments for granite hard stone block Cutting - "||" step taper shape
Sandwich or multi-layer structure
Diamond Segment "||" step taper shape with sandwich/mulit-layer structure of 900-3500mm circular saw blades for block cutting of granite, sandstone, various hard stone with quartz.
Suitable for bridge cutting machines, single arm cutting machines.
Wet use only with sufficient water, coolant material put into water is benefit for faster cutting.
Welding method: silver/copper welding by high frequency welding machine.
|
|
|
|
for granite block cutting
|
high frequency welding
|
|
|
|
|
sandwich structure |
multi-layer structure |
| Code No. |
Diameter (mm) |
Segment Dimension
(L×W×H)mm |
Segment No. |
|
DSGB-04-0900 |
900 |
24x7.0/6.4x12/15/20 |
64 |
| DSGB-04-1000 |
1000 |
24x7.5/7.0/6.5x12/15/20 |
70 |
| DSGB-04-1100 |
1100 |
24x7.5/7.0/6.5x12/15/20 |
74 |
| DSGB-04-1200 |
1200 |
24x7.8/7.4/7.0x12/15/20 |
80 |
| DSGB-04-1350 |
1350 |
24x8.4/7.9/7.4x12/15/20 |
88 |
| DSGB-04-1400 |
1400 |
24x8.4/7.9/7.4x12/15/20 |
96 |
| DSGB-04-1600 |
1600 |
24x9.4/8.9/8.4x12/15/20 |
104/108 |
| DSGB-04-1700 |
1700 |
24x9.4/8.9/8.4x12/15/20 |
112 |
| DSGB-04-1800 |
1800 |
24x10/9.4/8.8x12/15/20 |
120 |
| DSGB-04-2000 |
2000 |
24x10.6/10.0/9.6x12/15/20 |
128 |
| DSGB-04-2200 |
2200 |
24x11.5/11/10.5x12/15/20 |
132/136 |
| DSGB-04-2500 |
2500 |
24x12/11.5/11x15/20 |
140 |
|
24/30x12.5/12/11.5/11x30 |
|||
| DSGB-04-2700 |
2700 |
24x12/11.5/11x20/25 |
140 |
|
24/30x12.5/12/11.5/11x30 |
|||
| DSGB-04-3000 |
3000 |
24x12.5/12/11.5x20/25 |
160 |
|
24/30x13/12.5/12/11.5x30 |
|||
| DSGB-04-3500 |
3500 |
24x13/12.5/12x20/25 |
180 |
|
24/30x13.5/13/12.5/12x30 |
The above specifications & photos are for reference, other specification may be available as per demand.
