Matrix diamond segments of circular saw blades for cutting granite hard stone - arix segments with V grooves
For diameter: 300-500mm
Segment size: H15/20mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

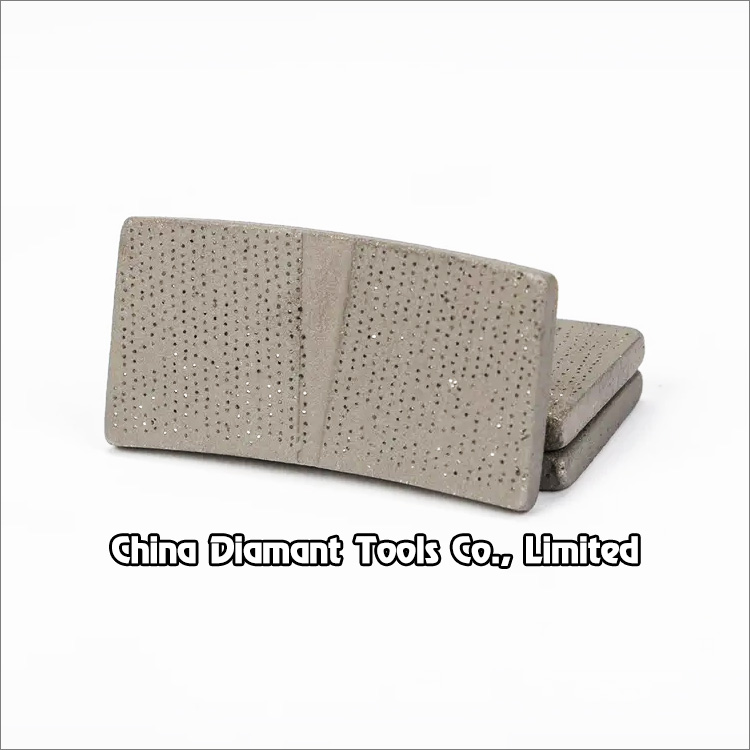

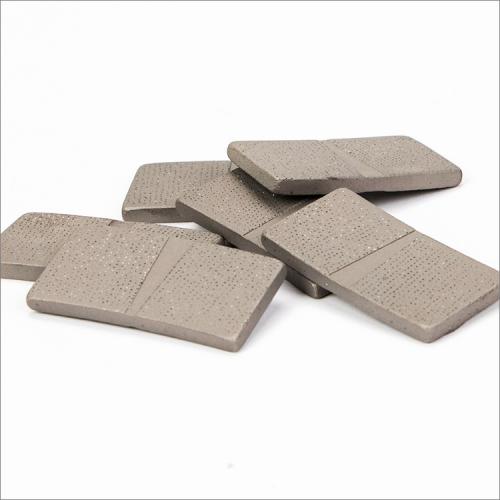

Diamond segments of circular saw blades for cutting granite hard stone - matrix (arix) segments with V grooves
Diamond matrix segments with V groove of 300-500mm circular saw blades for slab edge cutting of granite, sandstone, various hard stone with quartz.
Under same bond condition, the cutting speed and life of diamond matrix segments are both minimum 20% more than other regular segments.
Suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.
Wet use only with sufficient water.
Welding method: Silver welding by high frequency welding machine.
|
|
|
|

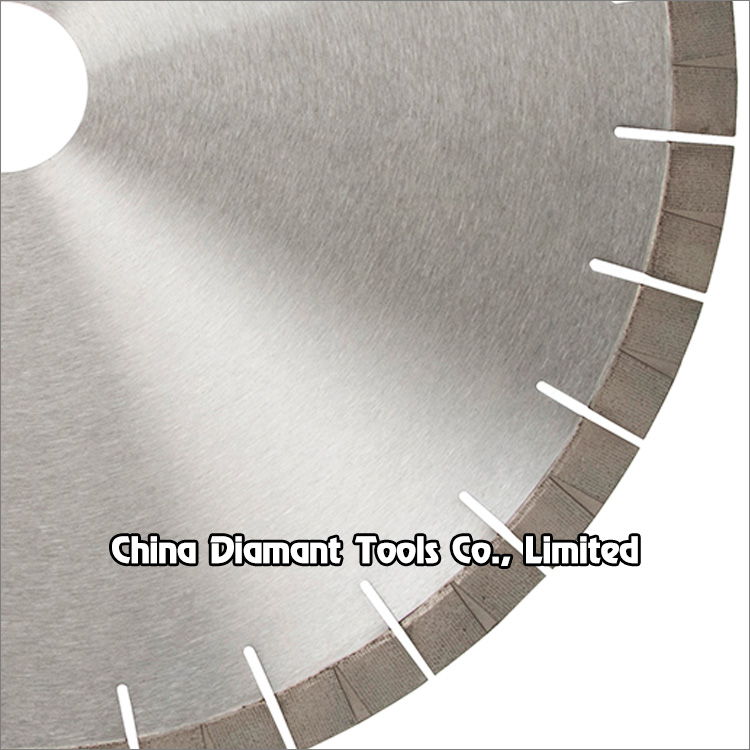

blade with matrix segments
|
structure
|
|
|
|
|
Cutting Speed |
Cutting Life |
| Code No. |
Diameter (mm/Inch) |
Segment Size LxWxH(mm) |
Segment No. (pcs/set) |
| DSMATRIX-02-300 |
300mm(12") |
40x3.2x15/20 |
21 |
| DSMATRIX-02-350 |
350mm(14") |
40x3.2x15/20 |
24 |
| DSMATRIX-02-400 |
400mm(16") |
40x3.4x15/20 |
28 |
| DSMATRIX-02-450 | 450mm(18") |
40x3.6x15/20 |
32 |
| DSMATRIX-02-500 |
500mm(20") |
40x3.8x15/20 |
36 |
The above specifications & photos are for reference, other specification may be available as per demand.
