900mm-2200mm diamond segments for granite hard stone block Cutting - taper with raised concave V top
For diameter: 900-2200mm
Segment size: H15mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding
900mm-2200mm diamond segments for granite hard stone block Cutting - taper with raised/concave V top
Multi-layer structure

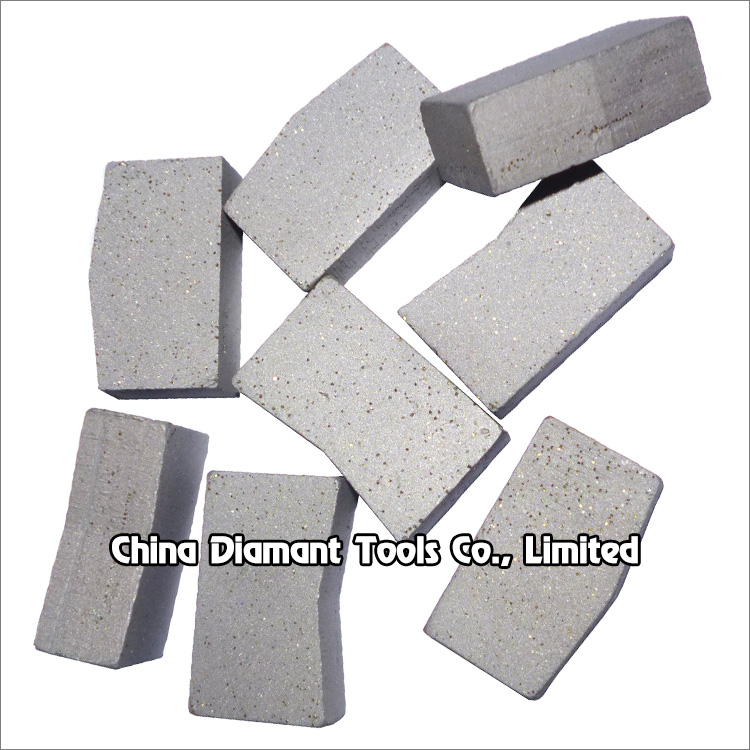

Diamond segments raised/concave V & taper shape with mulit-layer structure of 900-2200mm circular saw blades for block cutting of granite, sandstone, various hard stone with quartz.

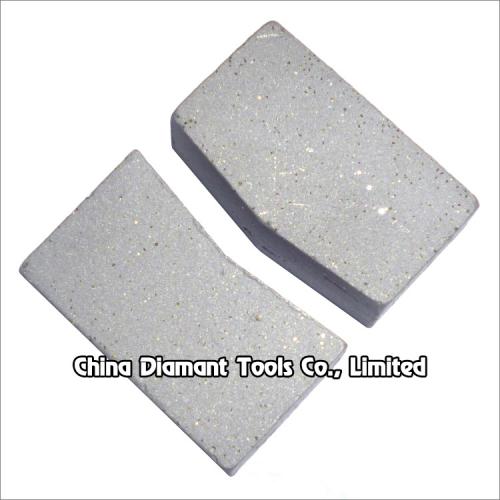

There are 50% raised V shape and 50% concave V shape for one full set segments, V shape is benefit for fast segment opening of initial cutting.
Only one type V shape for full set segments is available.
Suitable for bridge cutting machines, single arm cutting machines.
Wet use only with sufficient water, coolant material put into water is benefit for faster cutting.
Welding method: silver/copper welding by high frequency welding machine.
| Code No. |
Diameter (mm) |
Segment Dimension (L×W×H)mm |
Segment No. (pcs/set) |
|
DSGB-03-0900 |
900 |
24x7.0/6.5x15 |
64 |
| DSGB-03-1000 |
1000 |
24x7.0/6.5x15 |
70 |
| DSGB-03-1100 |
1100 |
24x7.4/6.8x15 |
74 |
| DSGB-03-1200 |
1200 |
24x7.5/7.0x15 |
80 |
| DSGB-03-1350 |
1350 |
24x8.4/7.7x15 |
88 |
| DSGB-03-1400 |
1400 |
24x8.5/8.0x15 |
96 |
| DSGB-03-1600 |
1600 |
24x9.0/8.4x15 |
104/108 |
| DSGB-03-1700 |
1700 |
24x9.4/8.4x15 |
112 |
| DSGB-03-1800 |
1800 |
24x9.5/9.0x15 |
120 |
| DSGB-03-2000 |
2000 |
24x10.5/9.5x15 |
128 |
| DSGB-03-2200 |
2200 |
24x11.5/10.5x15 |
132/136 |
The above specifications & photos are for reference, other specification may be available as per demand.
