Diamond segments of wall cutting circular saw blades - normal flat Shape
For diameter: 450-1200mm
Segment size: H10/12mm
Materials cutting: concrete stone bricks
Production process: hot-press sintered
Welding type: silver welding

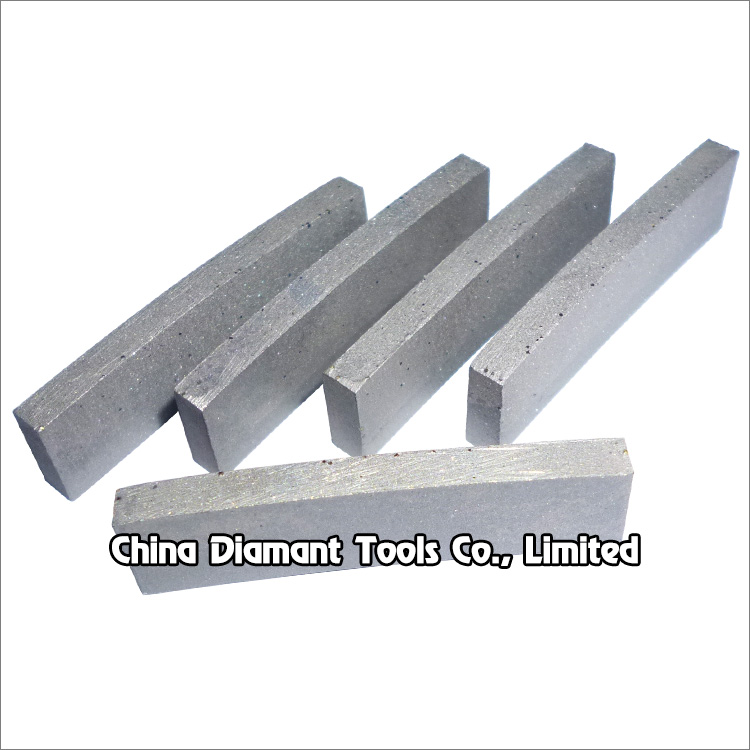

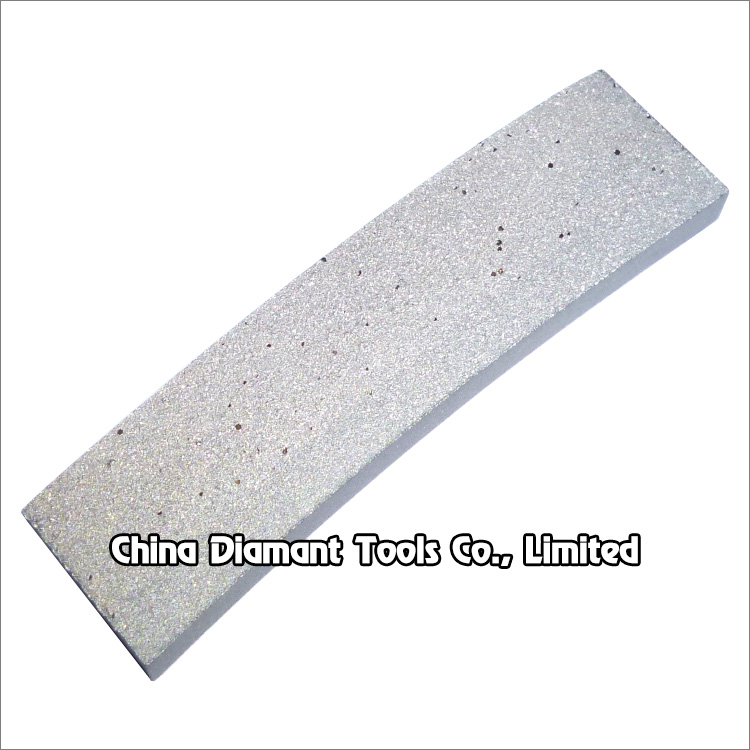

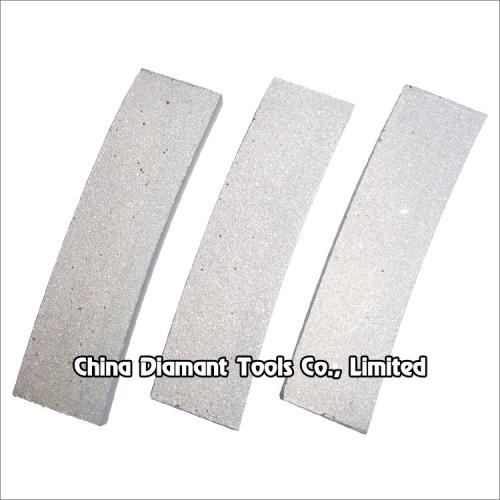

Diamond segments of wall cutting circular saw blades - normal flat Shape
This normal flat shape segments are widely used for replacement of used diamond segments on wall saw blades which are designed to cut openings in walls, floors, bridges, docks, dams, etc.
They are capable of cutting through steel reinforcement in all types of concrete, stone, bricks.
Segments length: 20 or 40mm
Segments height: 10 or 12mm
Welding method: laser welding or high frequency silver brazing.
Warning: no fire-welding.
|
Code No. |
Diameter (mm/inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
|
DSWS-01-01 |
450mm(18") |
20/40x4.6x10/12 |
24 |
| DSWS-01-02 |
500mm(20") |
20/40x4.6x10/12 |
28 |
| DSWS-01-03 |
600mm(24") |
20/40x4.6x10/12 |
34 |
| DSWS-01-04 |
650mm(26") |
20/40x4.6x10/12 |
36 |
| DSWS-01-05 |
700mm(28") |
20/40x4.6x10/12 |
40 |
| DSWS-01-06 |
750mm(30") |
20/40x4.6x10/12 |
42 |
| DSWS-01-07 |
800mm(32") |
20/40x4.6x10/12 |
46 |
| DSWS-01-08 |
900mm(36") |
20/40x4.6x10/12 |
52 |
| DSWS-01-09 |
1000mm(40") |
20/40x4.6x10/12 |
58 |
| DSWS-01-10 |
1050mm(42") |
20/40x4.6x10/12 |
60 |
| DSWS-01-11 | 1100mm(44") |
20/40x4.6x10/12 |
62 |
| DSWS-01-12 |
1200mm(48") |
20/40x4.6x10/12 |
70 |
The above specifications & photos are for reference, other specification may be available as per demand.
