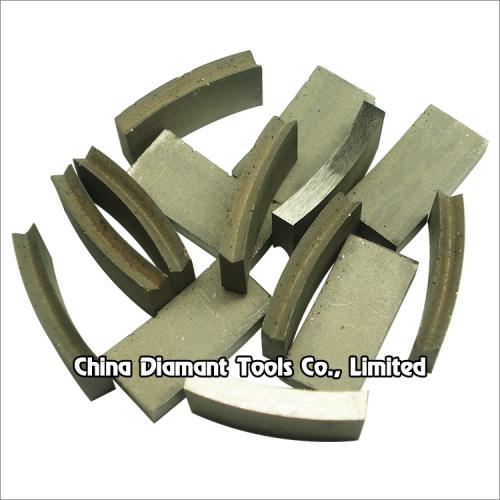

Diamond segments of drill bits - V groove top shape
For diameter: 57-356mm
Segment size: H13mm
Materials drilling: concrete
Production process: hot-press sintered
Welding type: silver welding
Diamond segments of drill bits - V groove top shape
Diamond segments of drill bits with V groove shape diameter 57mm-356mm provide smooth and fast drilling for various materials.
V groove is benefit for fast initial drilling and quick segments opening.

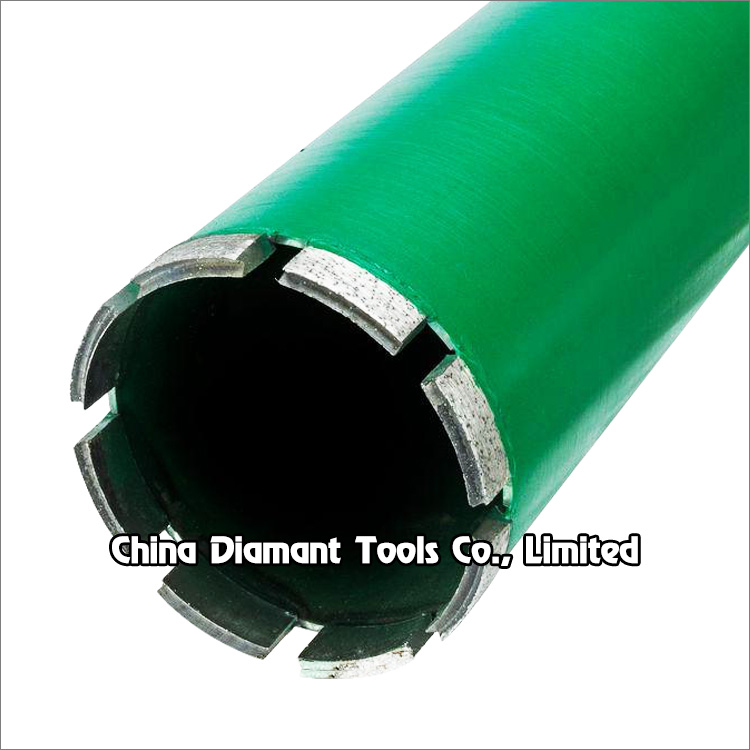

Applications: Widely used for replacement of used segments on diamond drill bits for drilling cured concrete, green concrete, reinforced concrete, brick, block, masonry, stone, or other abrasive materials, such as air conditioner installation, pipeline, high way, road signs, bridges, airports for high speed drilling.
Different bonds are available for different applications.
Welding method: silver or laser welding.
Wet use with sufficient water.
|
Code No. |
Diameter |
Segment Size |
Segment No. |
|
DSDB-07-57 |
2.25"(57mm) | 24x3.5x13 | 5 |
| DSDB-07-63 | 2.50"(63mm) | 24x3.5x13 | 6 |
| DSDB-07-70 | 2.75"(70mm) | 24x3.5x13 | 7 |
| DSDB-07-76 | 3"(76mm) | 24x3.5x13 | 8 |
| DSDB-07-82 | 3.25"(82mm) | 24x3.5x13 | 9 |
| DSDB-07-89 | 3.50"(89mm) | 24x3.5x13 | 10 |
| DSDB-07-102 | 4"(102mm) | 24x3.5x13 | 10 |
| DSDB-07-108 | 4.25"(108mm) | 24x3.5x13 | 11 |
| DSDB-07-114 | 4.50"(114mm) | 24x3.5x13 | 11 |
| DSDB-07-120 | 4.75"(120mm) | 24x4.0x13 | 11 |
| DSDB-07-127 | 5"(127mm) | 24x4.0x13 | 11 |
| DSDB-07-140 | 5.5"(140mm) | 24x4.0x13 | 12 |
| DSDB-07-146 | 5.75"(146mm) | 24x4.0x13 | 13 |
| DSDB-07-152 | 6"(152mm) | 24x4.0x13 | 13 |
| DSDB-07-159 | 6.25"(159mm) | 24x4.0x13 | 14 |
| DSDB-07-165 | 6.5"(165mm) | 24x4.0x13 | 15 |
| DSDB-07-178 | 7"(178mm) | 24x4.0x13 | 16 |
| DSDB-07-203 | 8"(203mm) | 24x4.5x13 | 18 |
| DSDB-07-229 | 9"(229mm) | 24x4.5x13 | 20 |
| DSDB-07-254 | 10"(254mm) | 24x4.5x13 | 23 |
| DSDB-07-180 | 11"(280mm) | 24x5.0x13 | 25 |
| DSDB-07-305 | 12"(305mm) | 24x5.0x13 | 27 |
| DSDB-07-330 | 13"(330mm) | 24x5.5x13 | 30 |
| DSDB-07-356 | 14"(356mm) | 24x5.5x13 | 32 |
The above specifications & photos are for reference, other specification may be available as per demand.
