Diamond segments of wall cutting circular saw blades - matrix (arix) segments
For diameter: 450-1200mm
Segment size: H10/12/15mm
Materials cutting: concrete stone bricks
Production process: hot-press sintered
Welding type: silver welding

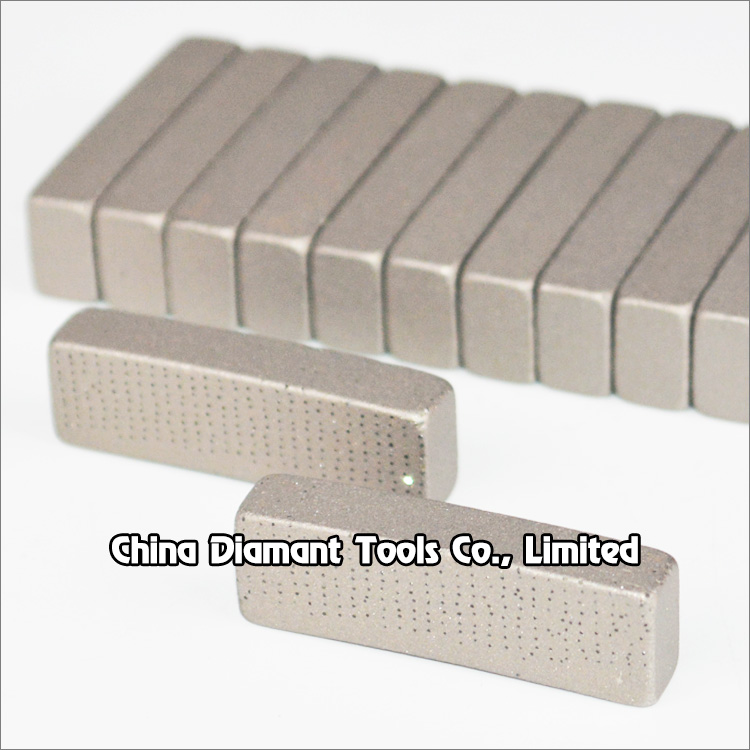

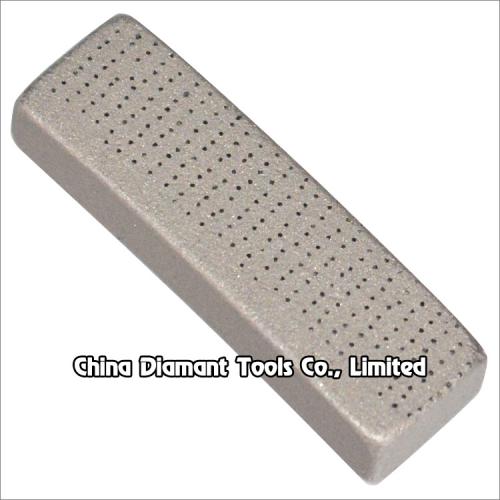

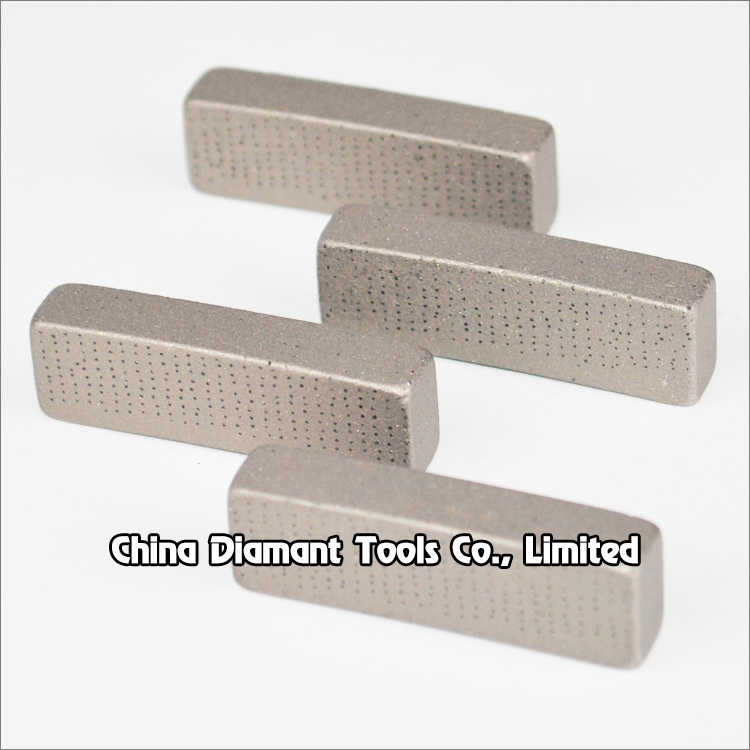

Diamond segments of wall cutting circular saw blades - matrix (arix) segments

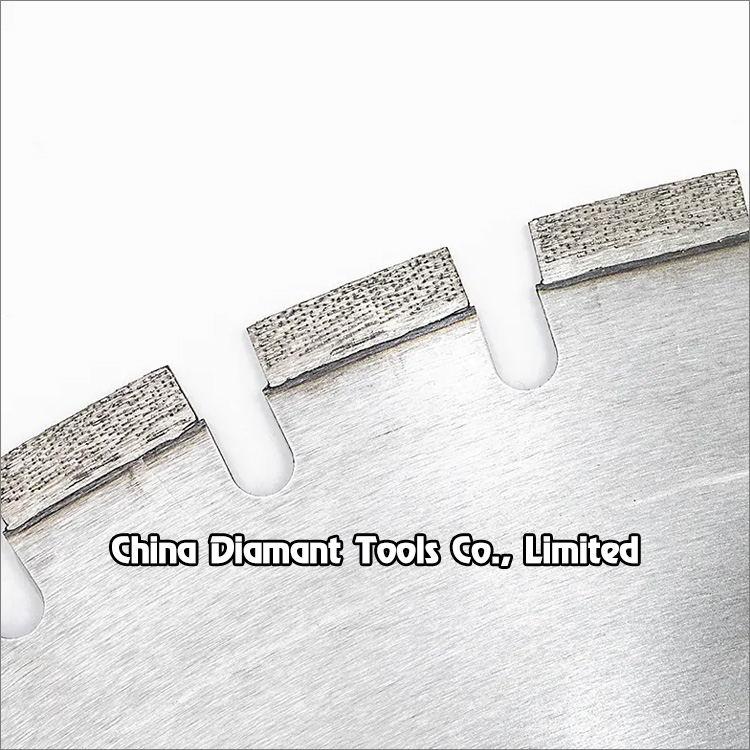

This diamond matrix segments are widely used for replacement of used segments on wall saw blades which are designed to cut openings in walls, floors, bridges, docks, dams, etc.
They are capable of cutting through steel reinforcement in all types of concrete, stone, bricks.
Under same bond condition, the cutting speed and life of diamond matrix segments are both minimum 20% more than other regular segments.
Segments length: 20 or 40mm,
Segments height: 10mm, 12mm or 15mm,
Welding method: laser welding or high frequency silver brazing.
Warning: no fire-welding.
|
Code No. |
Diameter (mm/inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
|
DSWS-03-01 |
450mm(18") |
20/40x4.6x10/12/15 |
24 |
| DSWS-03-02 |
500mm(20") |
20/40x4.6x10/12/15 |
28 |
| DSWS-03-03 |
600mm(24") |
20/40x4.6x10/12/15 |
34 |
| DSWS-03-04 |
650mm(26") |
20/40x4.6x10/12/15 |
36 |
| DSWS-03-05 |
700mm(28") |
20/40x4.6x10/12/15 |
40 |
| DSWS-03-06 |
750mm(30") |
20/40x4.6x10/12/15 |
42 |
| DSWS-03-07 |
800mm(32") |
20/40x4.6x10/12/15 |
46 |
| DSWS-03-08 |
900mm(36") |
20/40x4.6x10/12/15 |
52 |
| DSWS-03-09 |
1000mm(40") |
20/40x4.6x10/12/15 |
58 |
| DSWS-03-10 |
1050mm(42") |
20/40x4.6x10/12/15 |
60 |
| DSWS-03-11 | 1100mm(44") | 20/40x4.6x10/12/15 | 62 |
| DSWS-03-12 |
1200mm(48") |
20/40x4.6x10/12/15 |
70 |
The above specifications & photos are for reference, other specification may be available as per demand.
