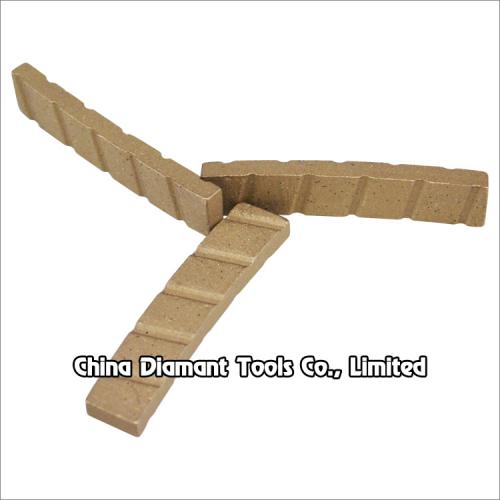

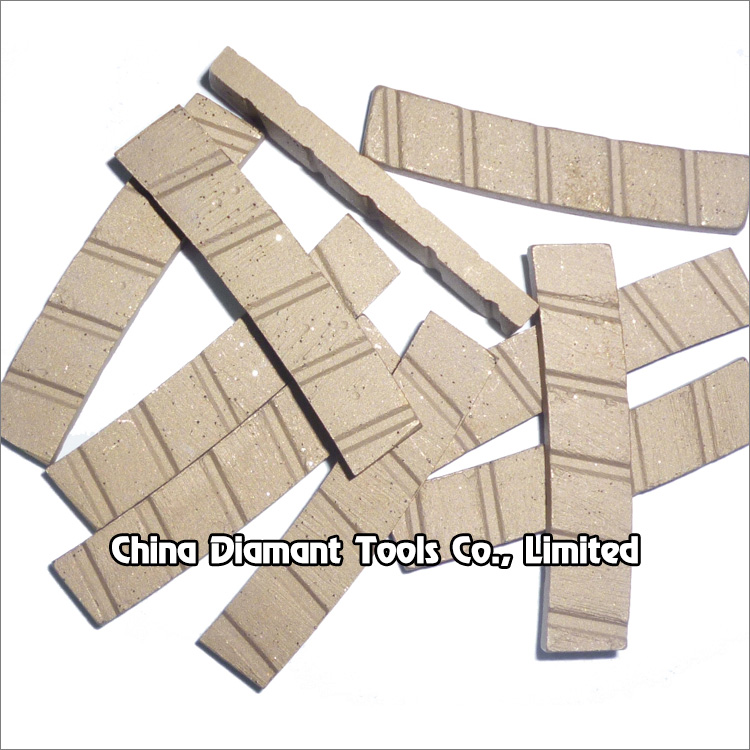

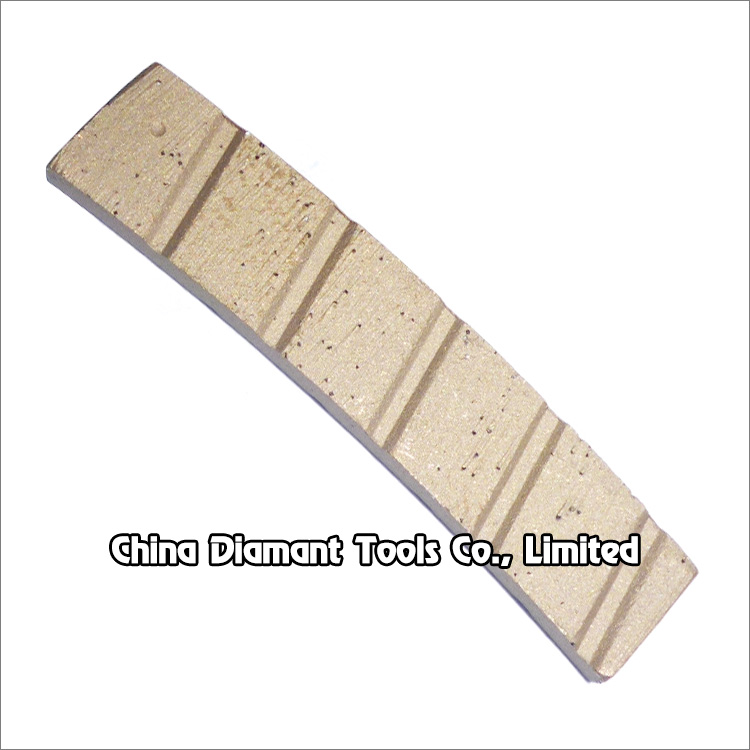

Diamond segments of circular saw blade for marble soft stone cutting - diagonal grooves shape
For diameter: 250-800mm
Segment size: H8mm
Materials cutting: marble,soft stone
Production process: hot-press sintered
Welding type: high-frequency silver welding
Diamond segments of circular saw blade for marble soft stone cutting - diagonal grooves shape
Diamond segment with diagonal grooves of 250-800mm circular saw blades for slab edge cutting of marble, limestone, slate, various soft stones without quartz.
Turbo shape is benefit for speed cutting and fast coolant.
Wet use only with sufficient water.
Welding method: Silver welding by high frequency welding machine.
|
Code No. |
Diameter (mm/Inch) |
Segment Size LxWxH(mm) |
Segment No. (pcs/set) |
|
DSMS-03-250 |
250mm(10") |
40x2.6/2.8x8 |
18 |
|
DSMS-03-300 |
300mm(12") |
40x3.0/3.2x8 |
21 |
|
DSMS-03-350 |
350mm(14") |
40x3.2/3.4x8 |
25 |
|
DSMS-03-400 |
400mm(16") |
40x3.6x8 |
28 |
|
DSMS-03-450 |
450mm(18") |
40x4.0x8 |
32 |
|
DSMS-03-500 |
500mm(20") |
40x4.2x8 |
36 |
|
DSMS-03-550 |
550mm(22") |
40x4.4x8 |
38 |
|
DSMS-03-600 |
600mm(24") |
40x4.6x8 |
42 |
|
DSMS-03-625 |
625mm(25") |
40x4.6x8 |
42 |
|
DSMS-03-700 |
700mm(28") |
40x5.0x8 |
50 |
|
DSMS-03-725 |
725mm(29") |
40x5.5x8 |
50 |
|
DSMS-03-800 |
800mm(32") |
40x5.2x8 |
46 |
The above specifications & photos are for reference, other specification may be available as per demand.
